Recording from the UI

Recording Requests

1. Visit the UI at http://locahost:4200.

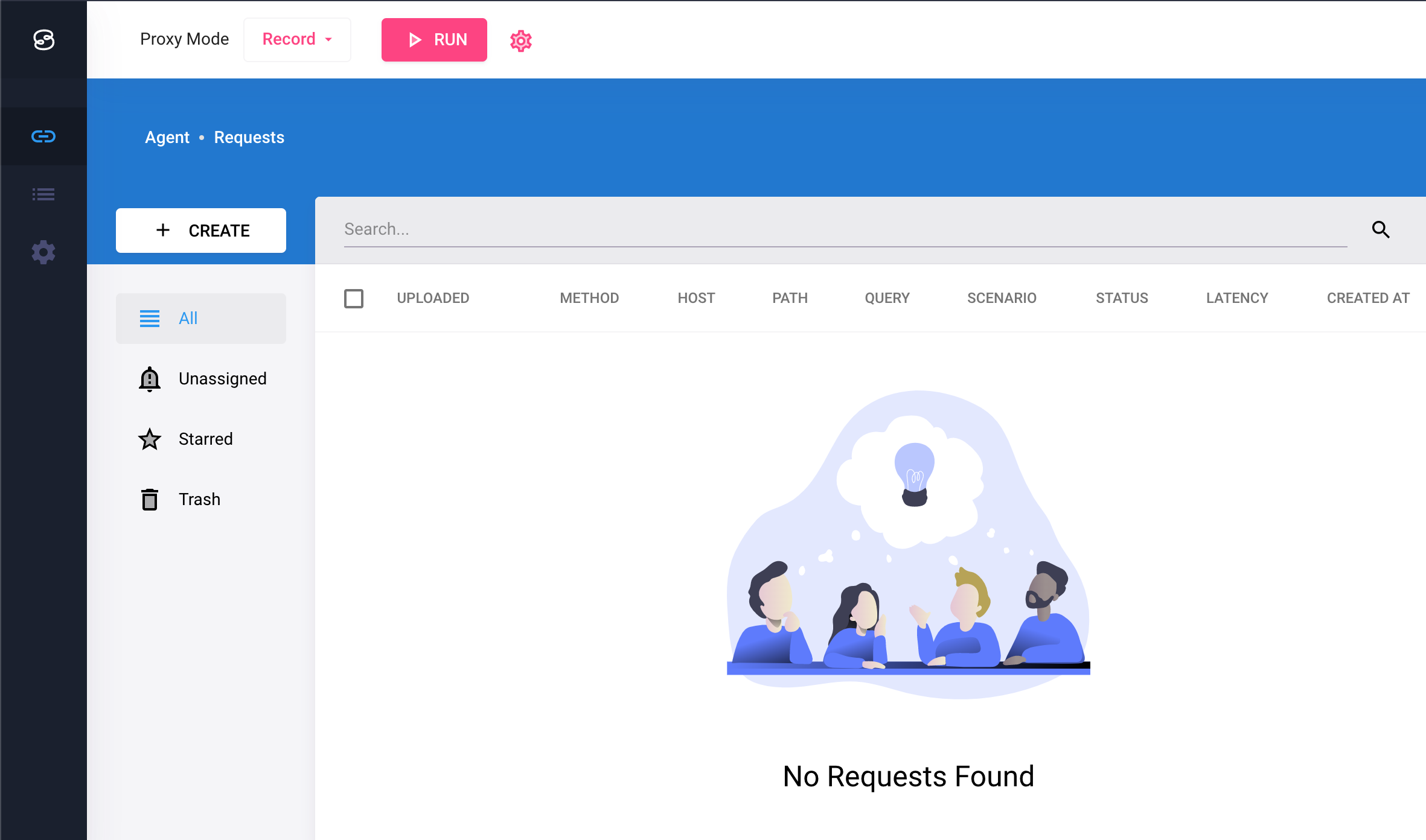

Figure 1. Requests page with no recorded requests

2. (Recommended) Configure a scenario to record requests to.

3. On the top left of the screen, click the Run button.

Figure 2. Agent UI navigation menu

The figure below indicates that recording has started.

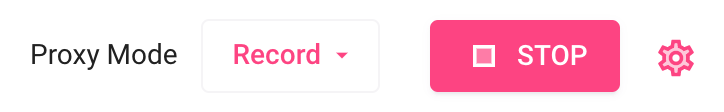

Figure 3. Agent set to record requests

4. If the system proxy was configured properly to forward requests to our agent, you should now see requests appear in the requests page! You can now:

• Open up a new browser tab and visit your favorite webpage.

• Alternatively you can also use any HTTP client tool to send a request such as with cURL.

Figure 4. Requests page with one recorded request

Scenario Configuration

Recording to a scenario is not required, but highly recommended.

1. Visit http://localhost:4200/agent/proxy-settings.

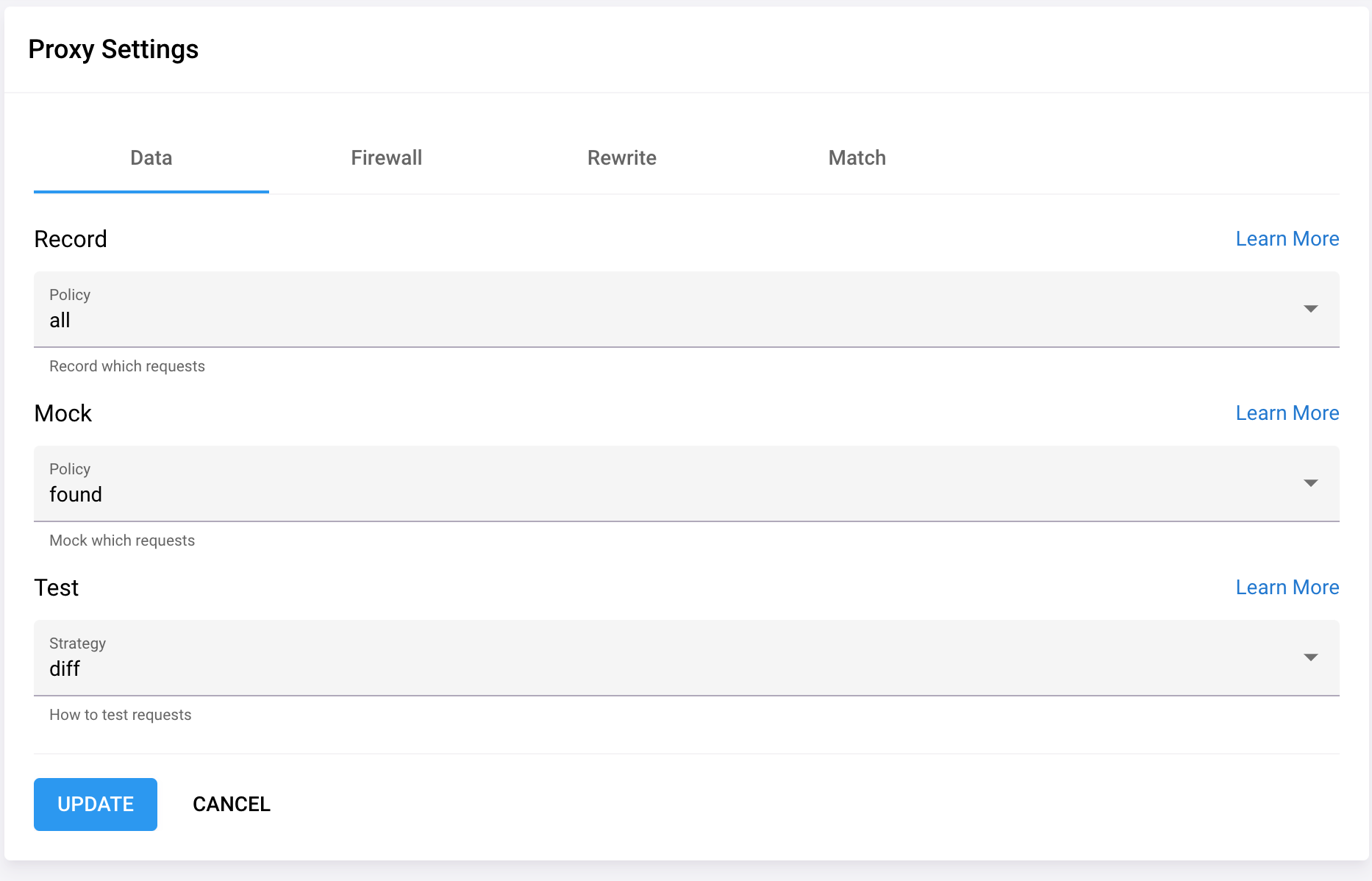

Figure 5. Record General Settings

2. Set Source or Destination to a scenario.

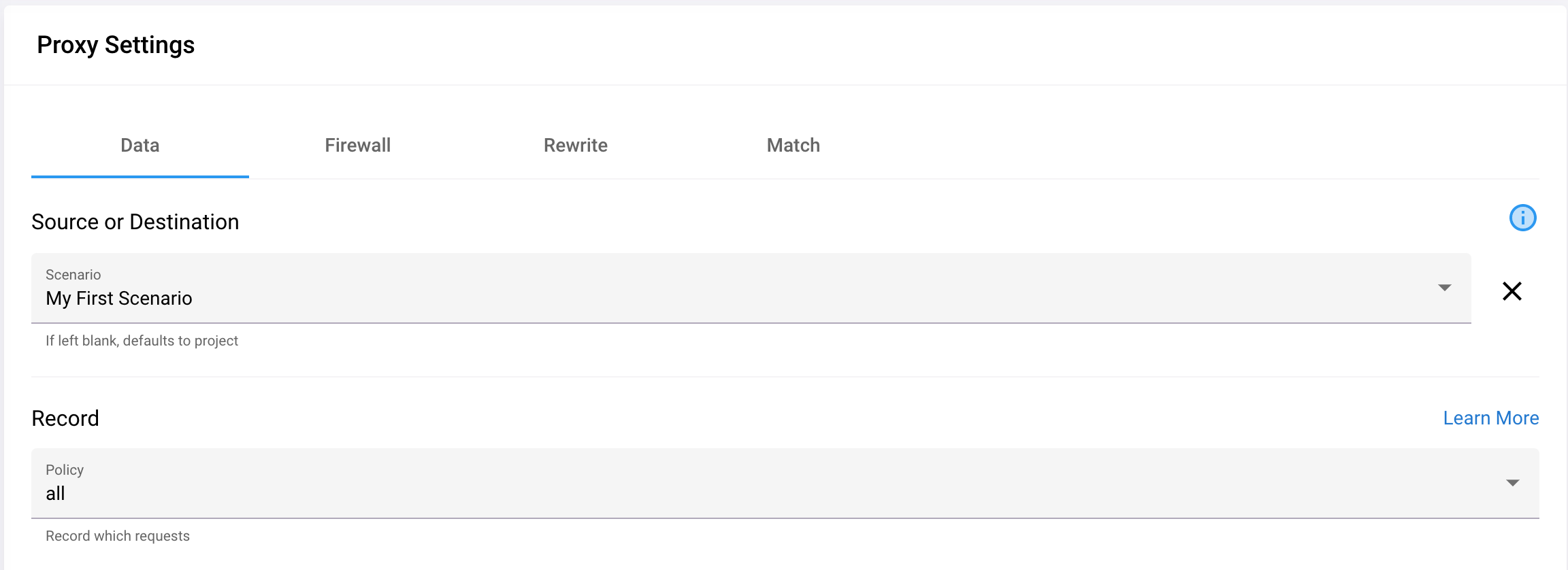

Figure 8. How to set the destination to your scenario
